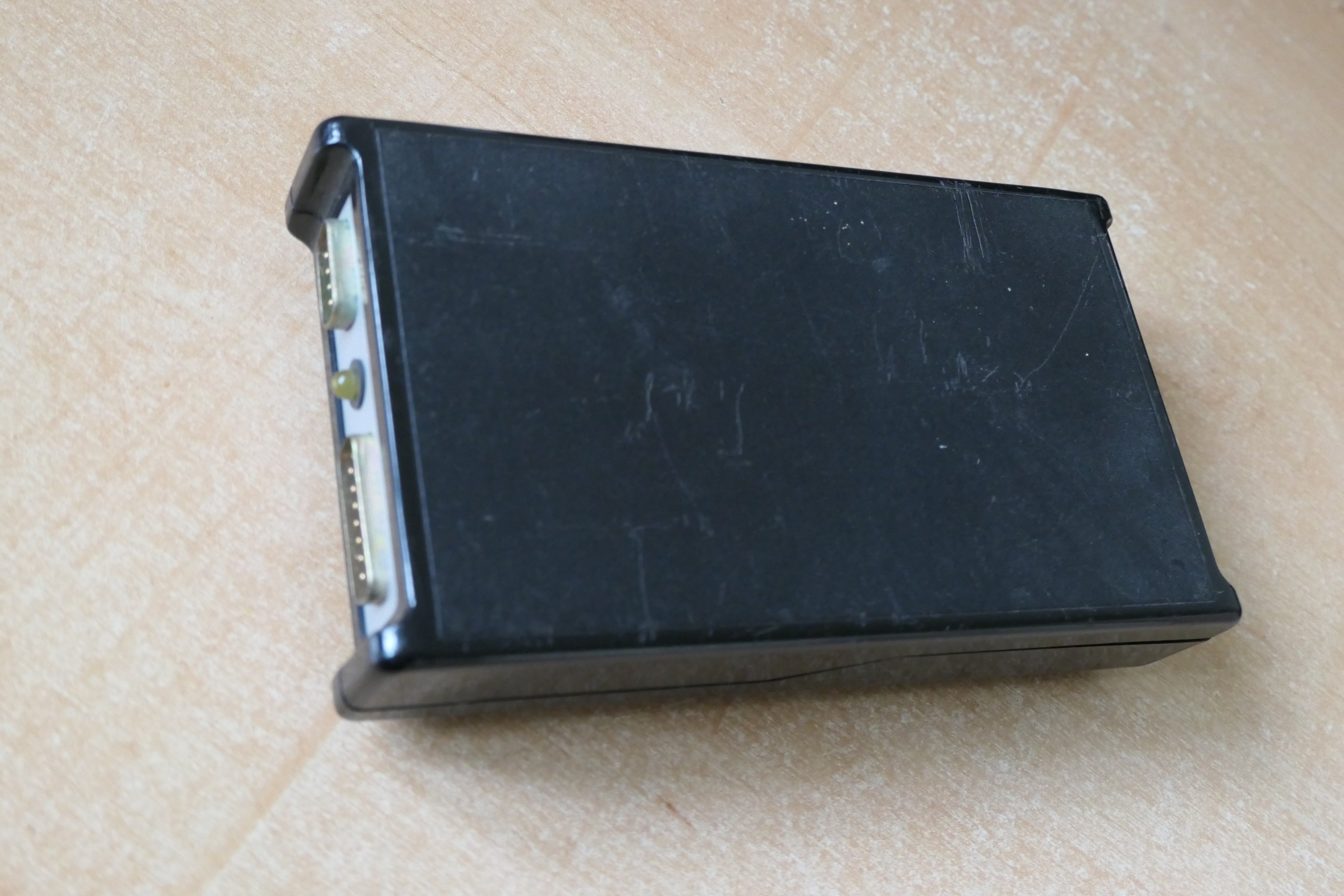

A low powered, self-contained data logger based on the 80C35 processor with 32k RAM and various packaging, expansion & programming options. Designed by Paul Spurgeon in the mid-1980's and marketed by Data Harvest. Protoype has two front panel connectors: one for analogue & digital inputs, the other for an RS423 serial PC interface. Rear connector for battery charging. Data logging intervals from 4 milli-seconds to 15 minutes are set via software. Power saved by putting the CPU to sleep between data logging wake-ups, programmed by the RTC.

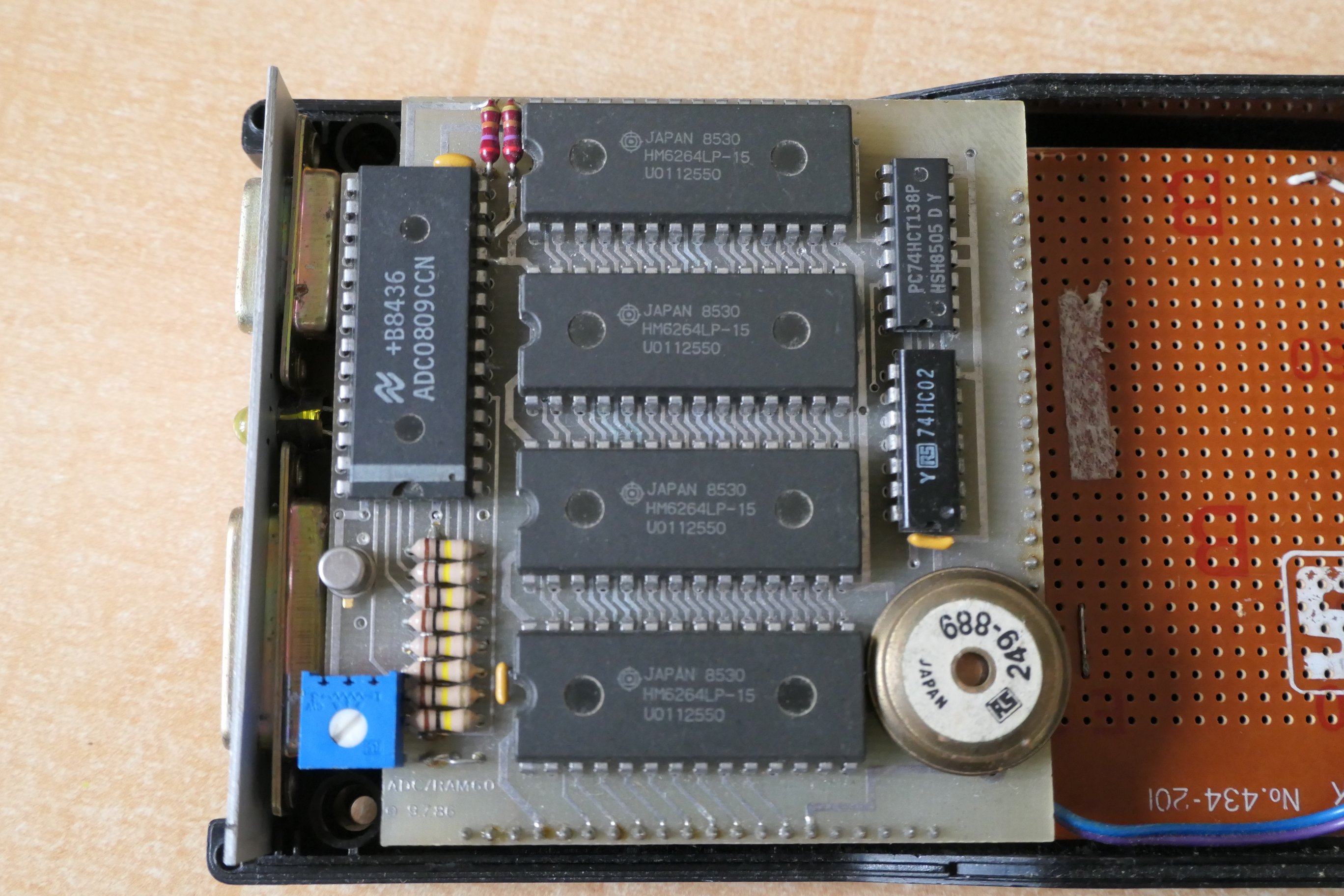

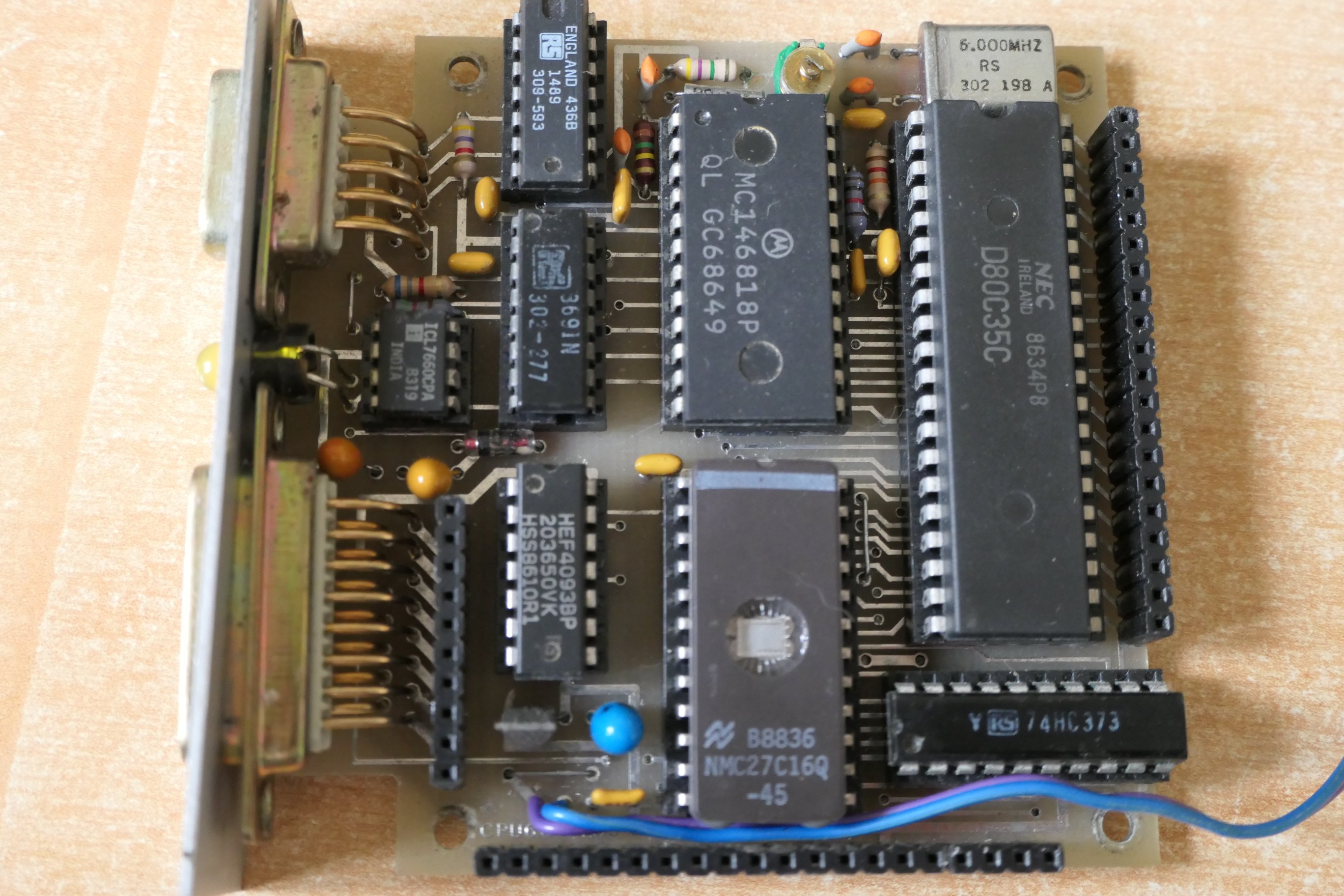

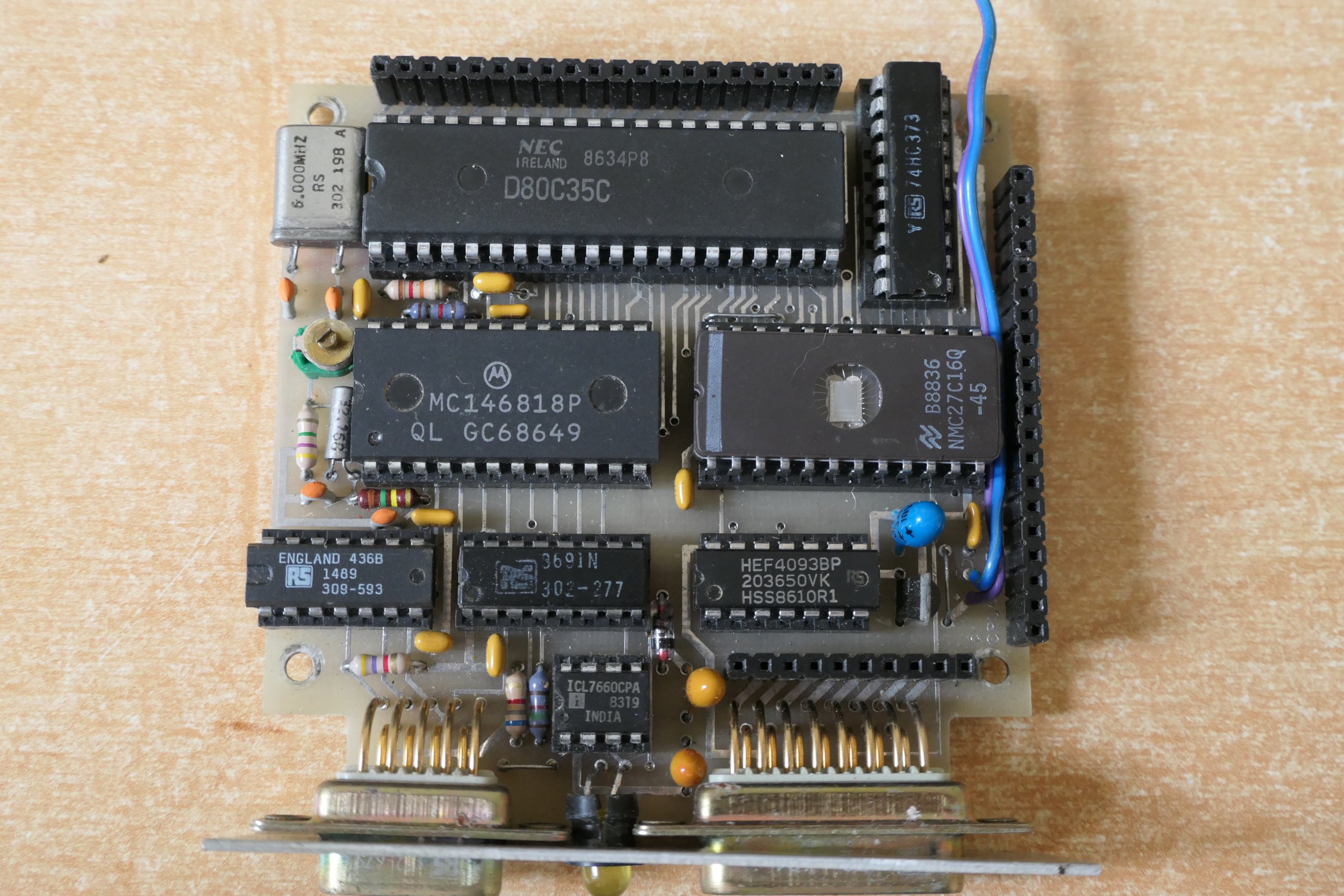

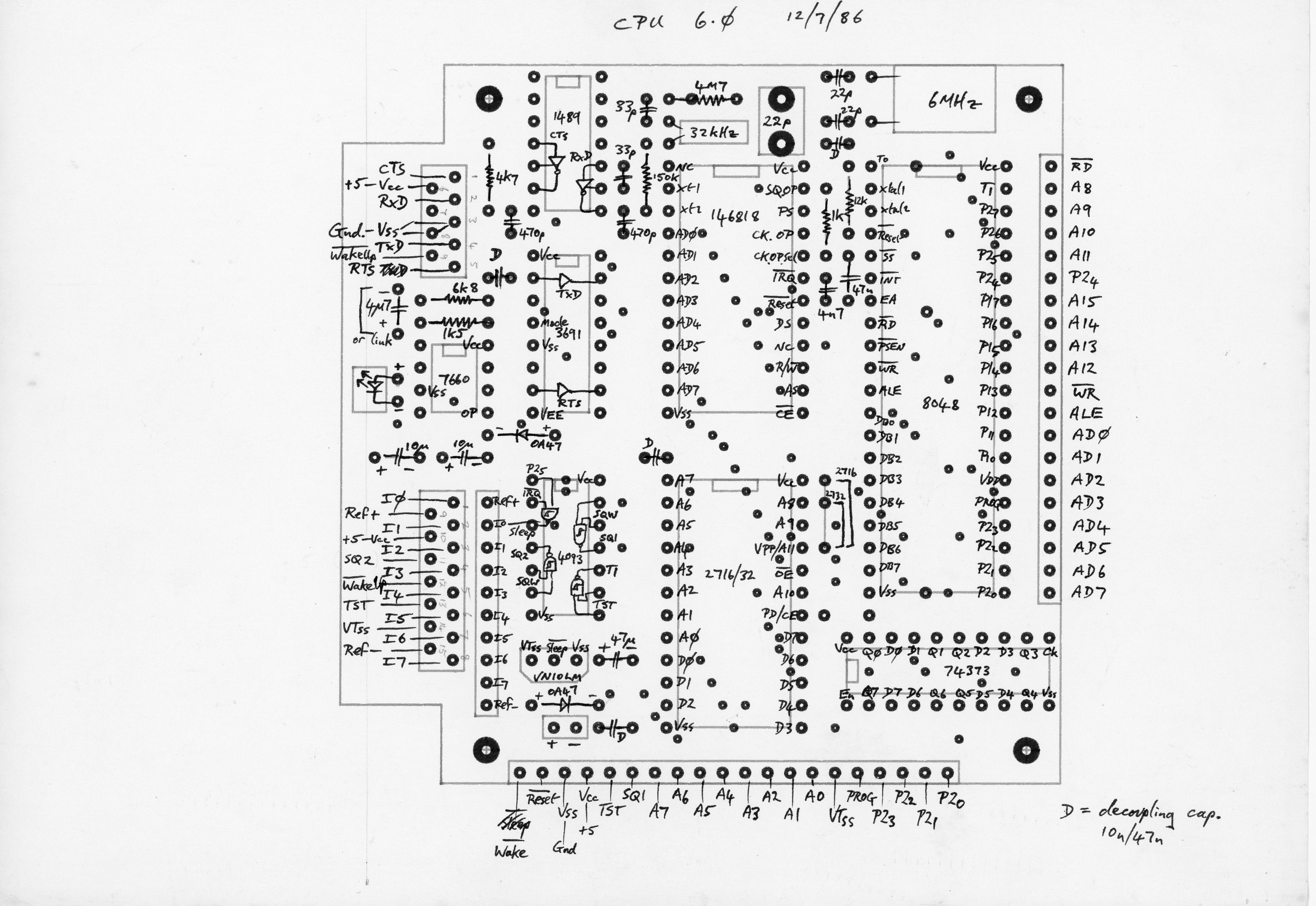

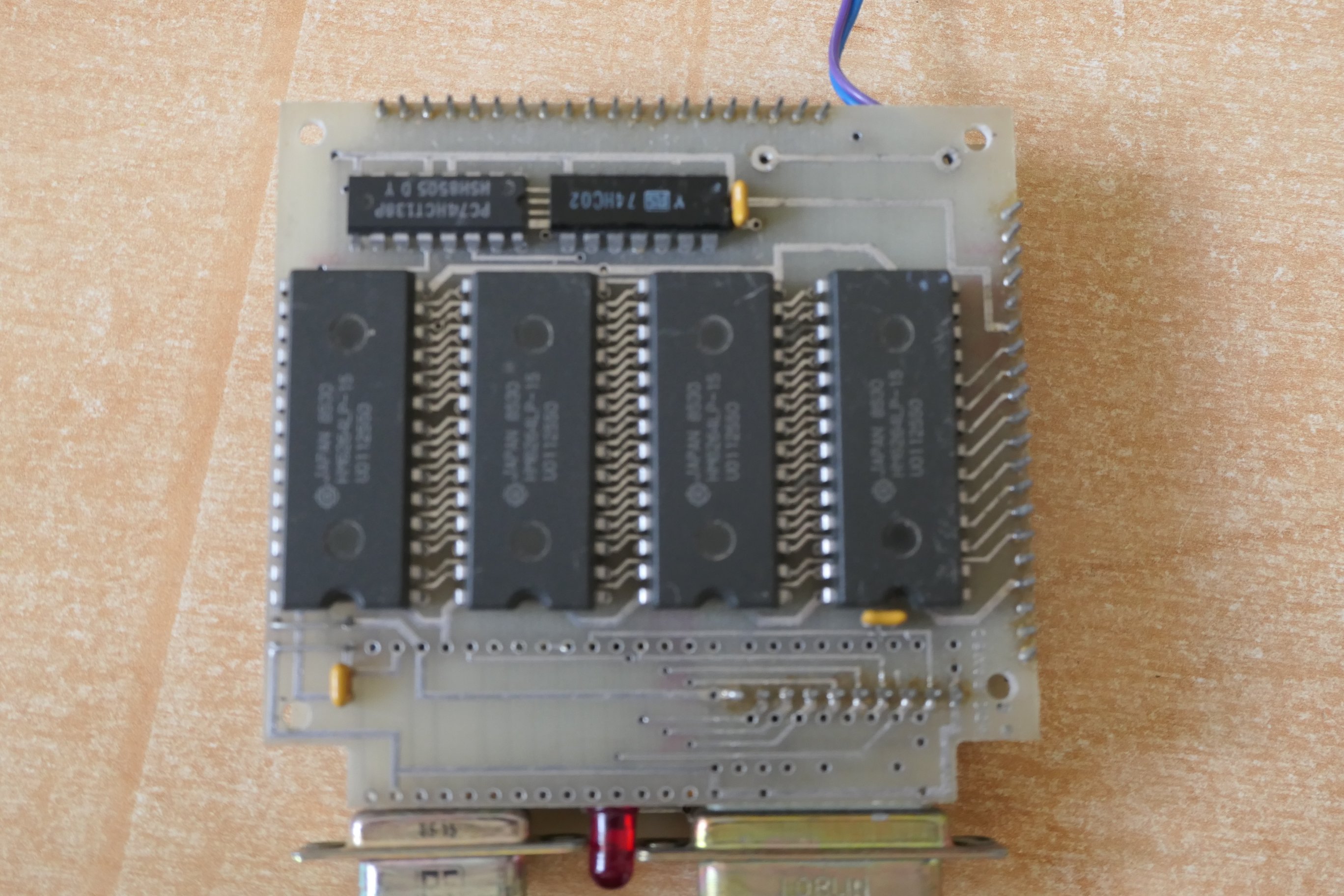

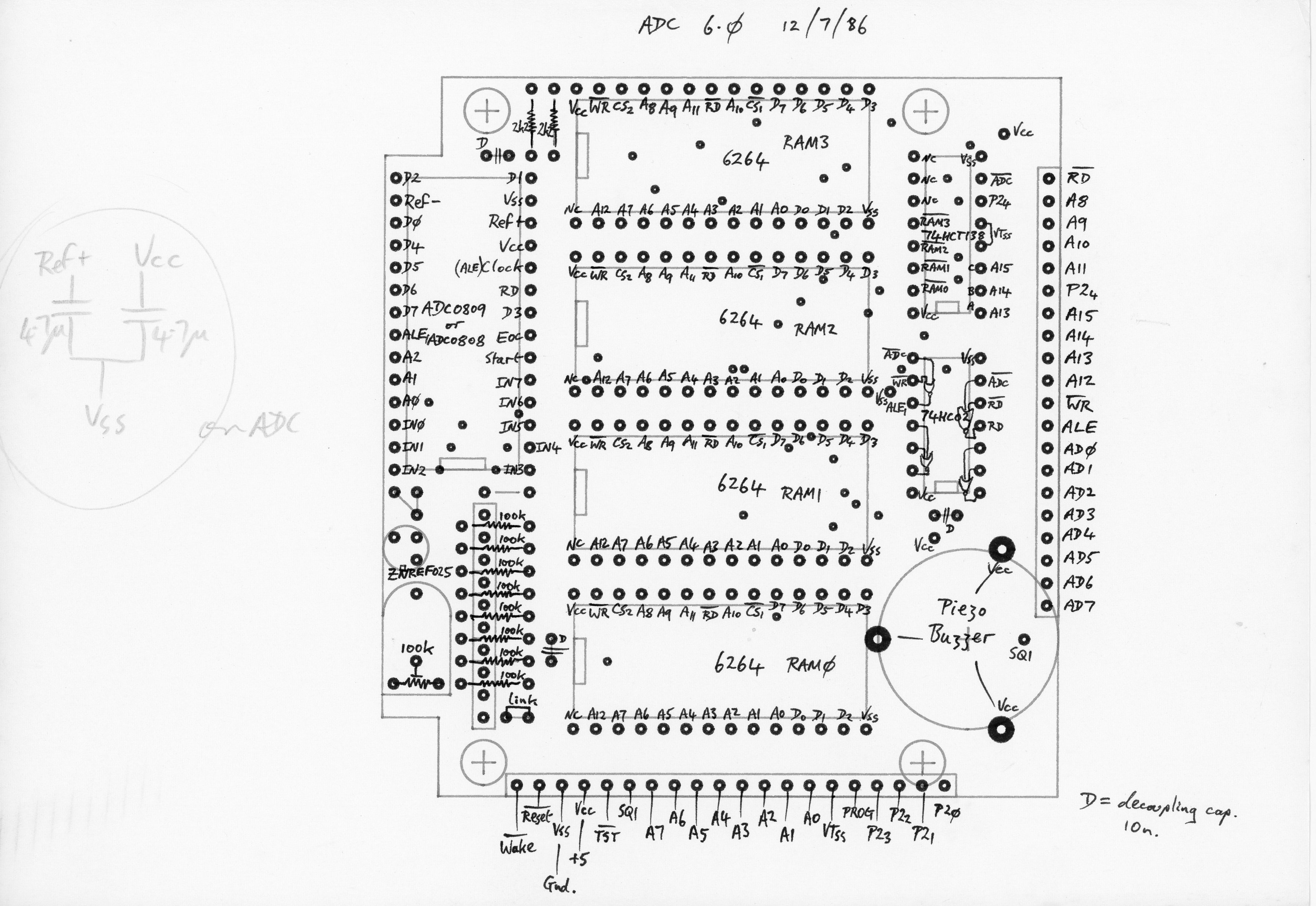

Prototype Databox consists of 2 PCBs. Lower layer PCB contains 80C35 CPU, 2k EPROM, & RTC, top PCB 32k RAM & 8 channel 8 bit ADC converter.

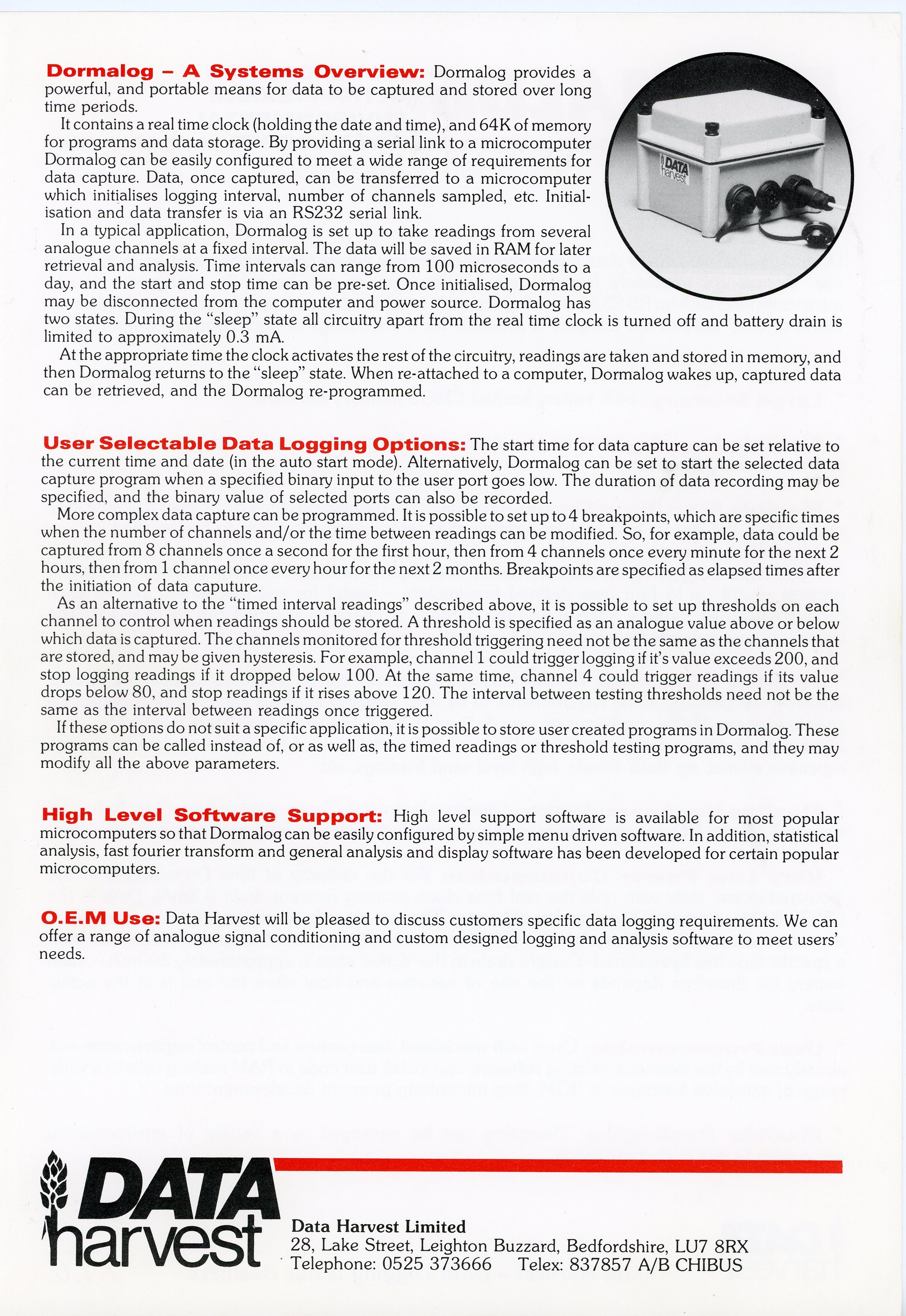

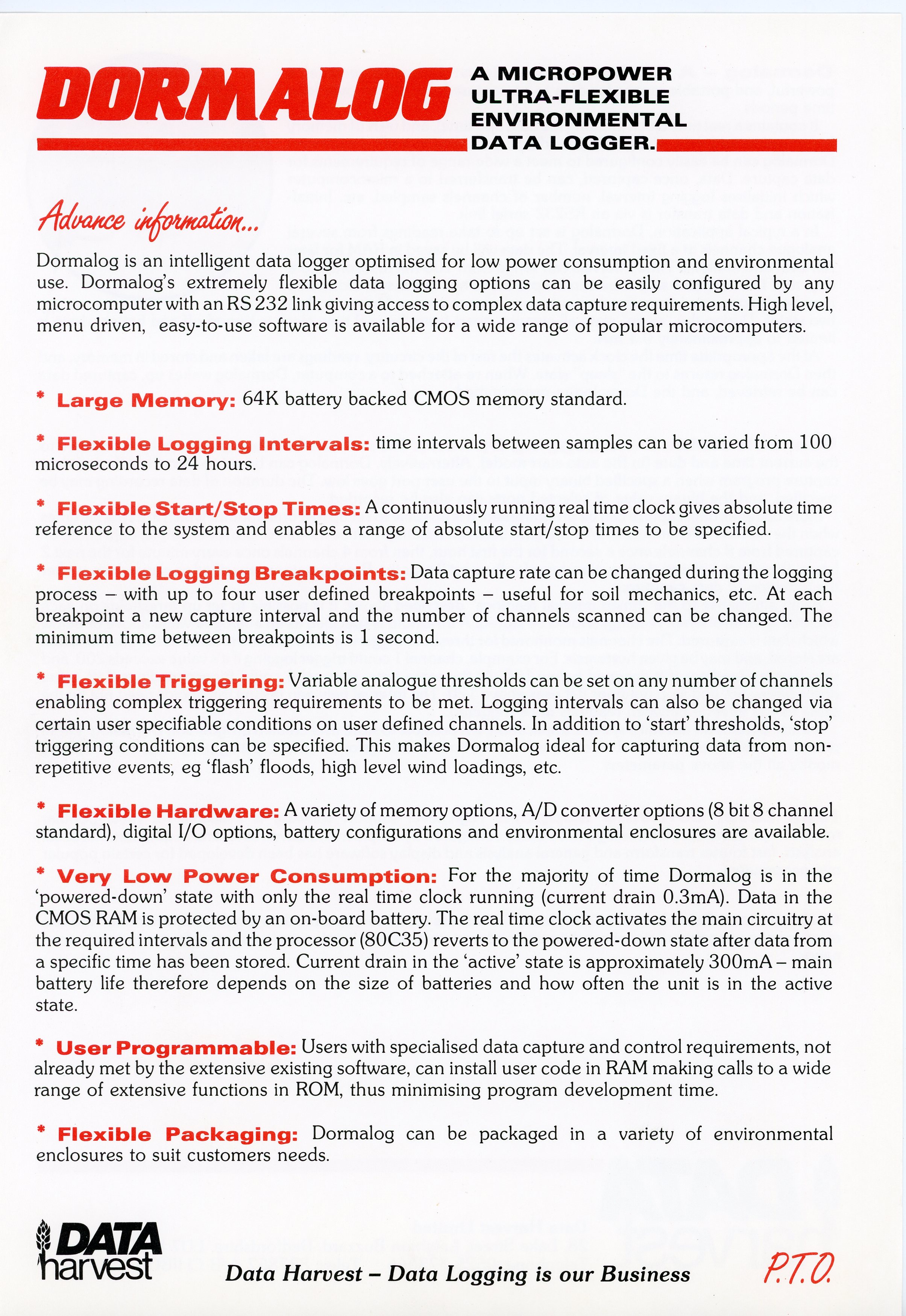

Later versions of Databox were redesigned for Data Harvest, repackaged, and marketed as Dormalog, an environmental data logger with 64k RAM.

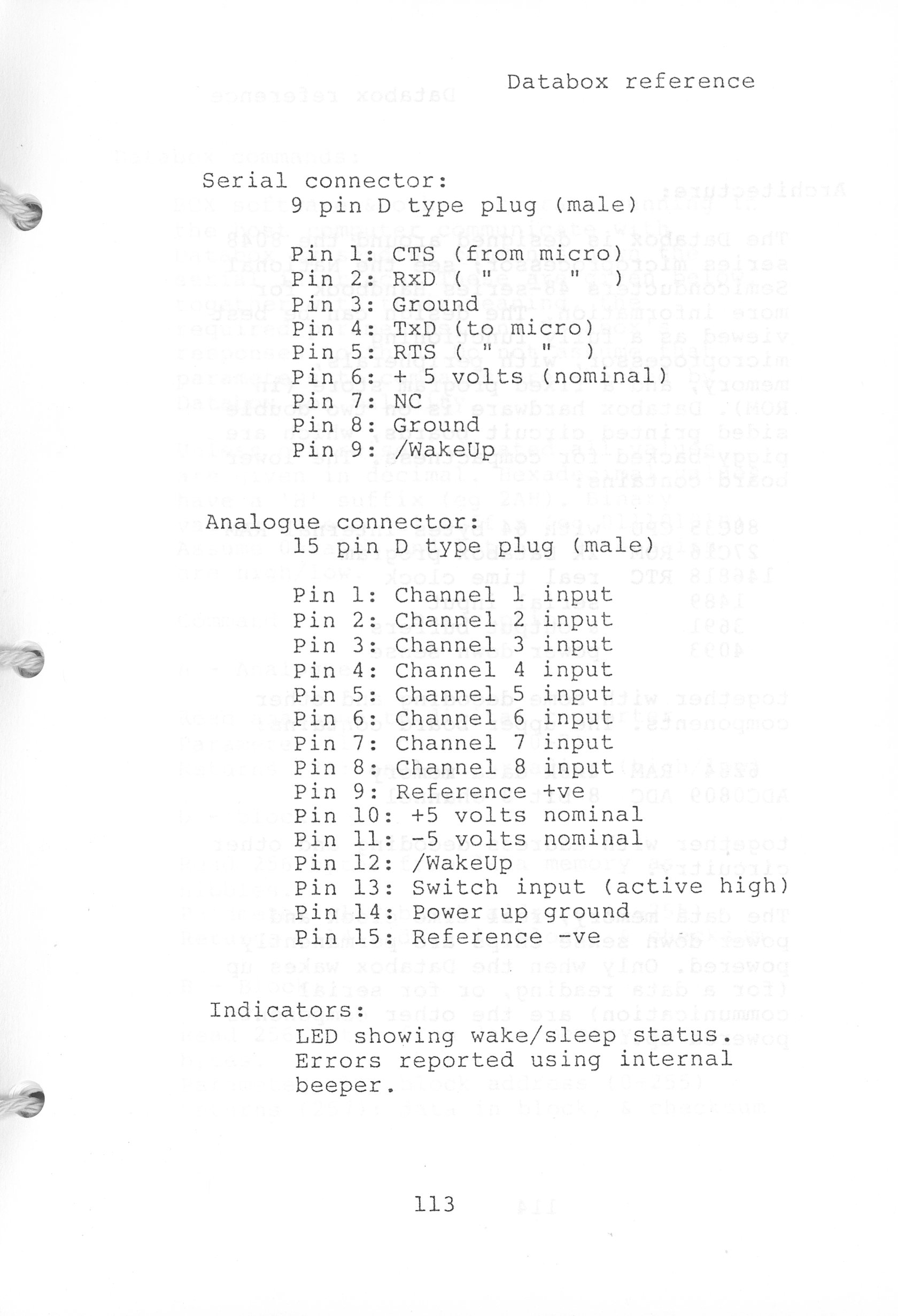

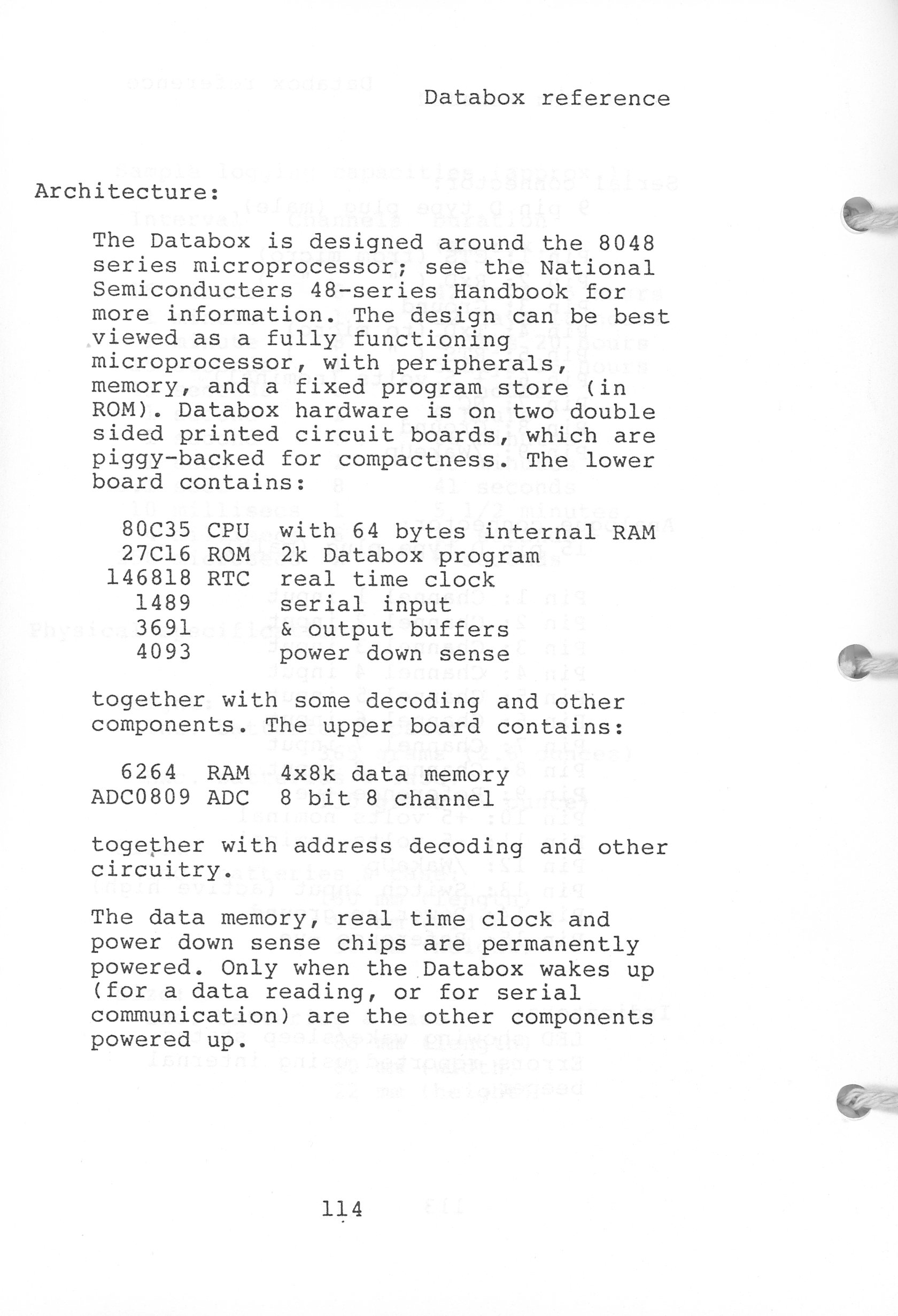

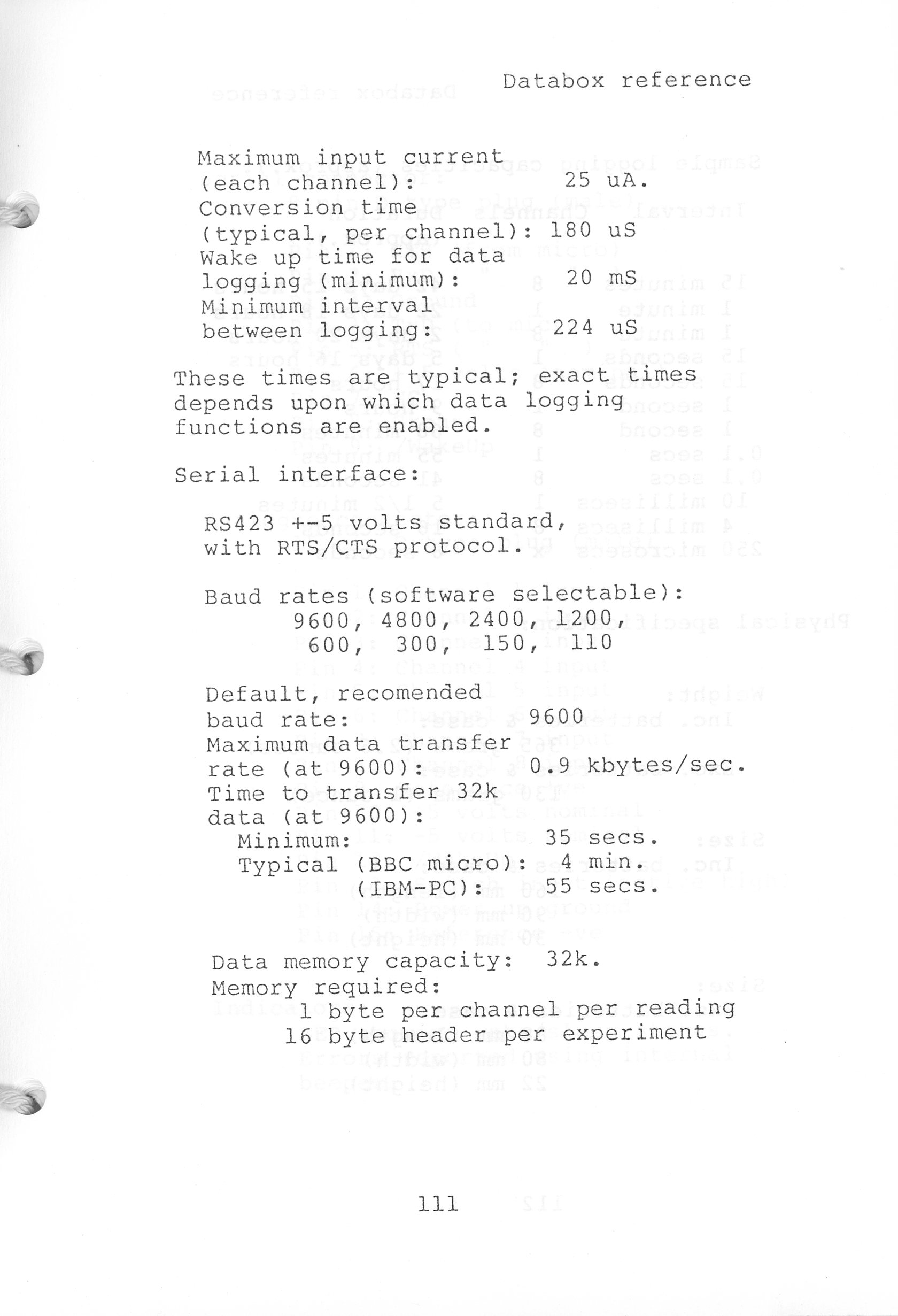

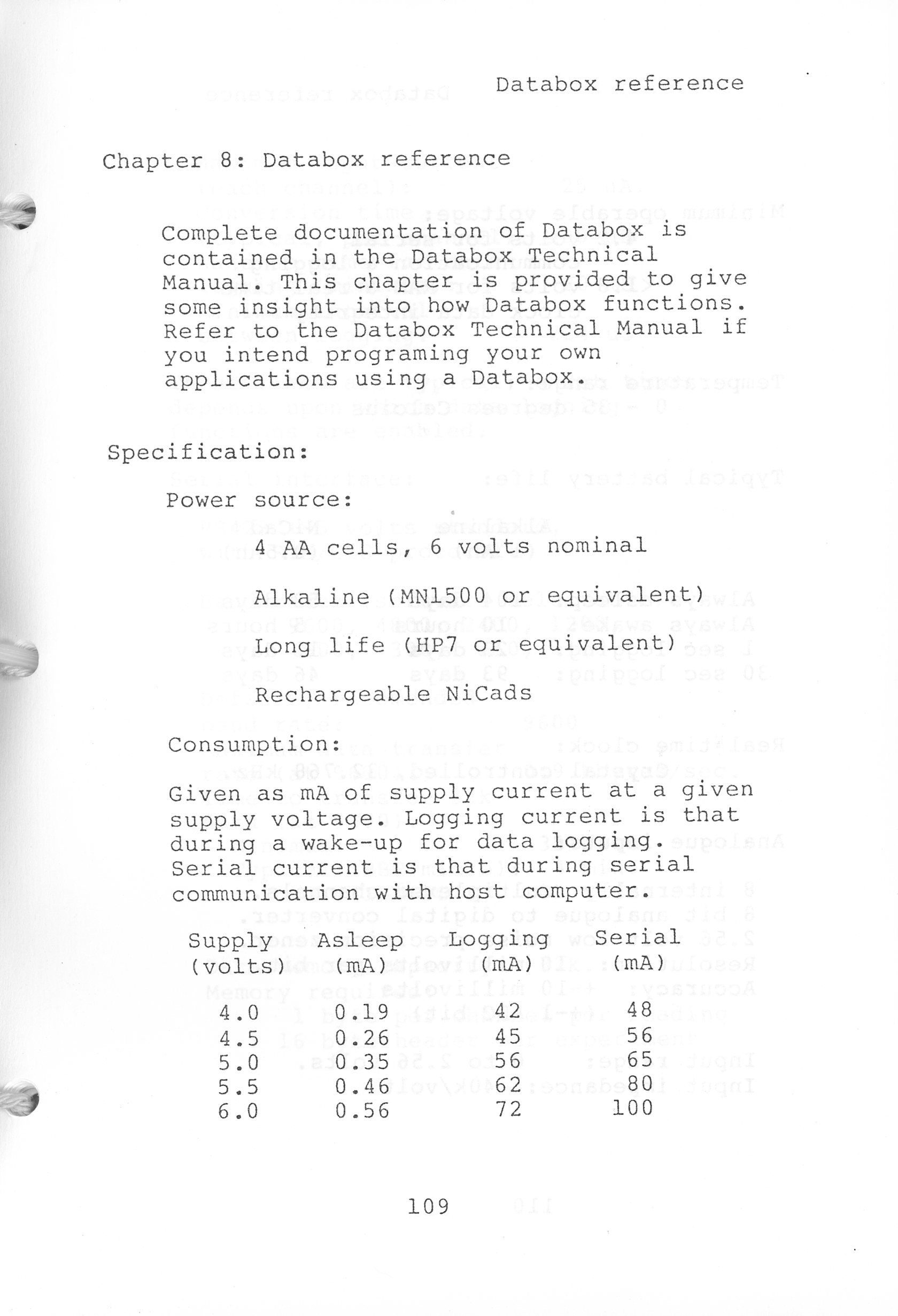

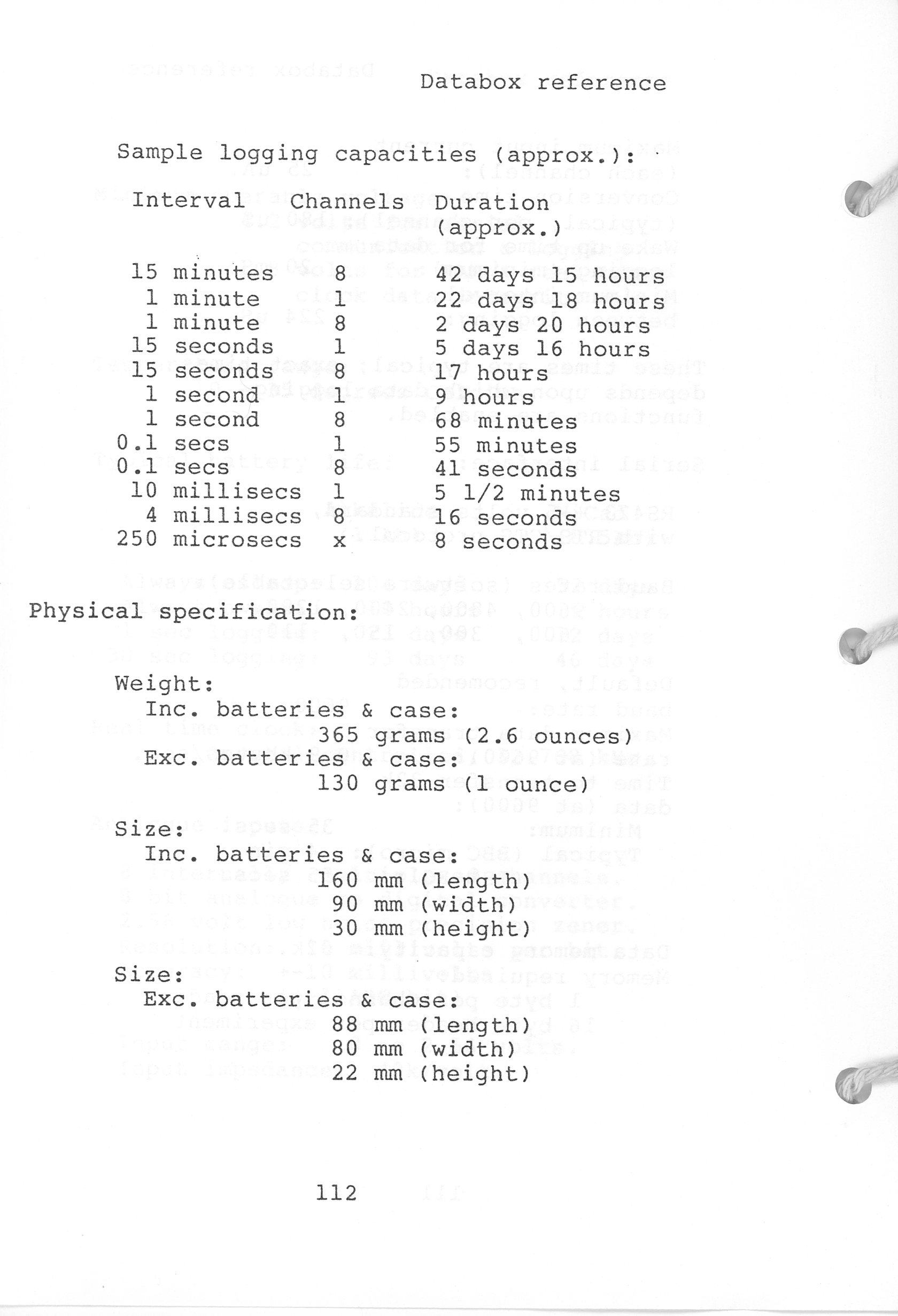

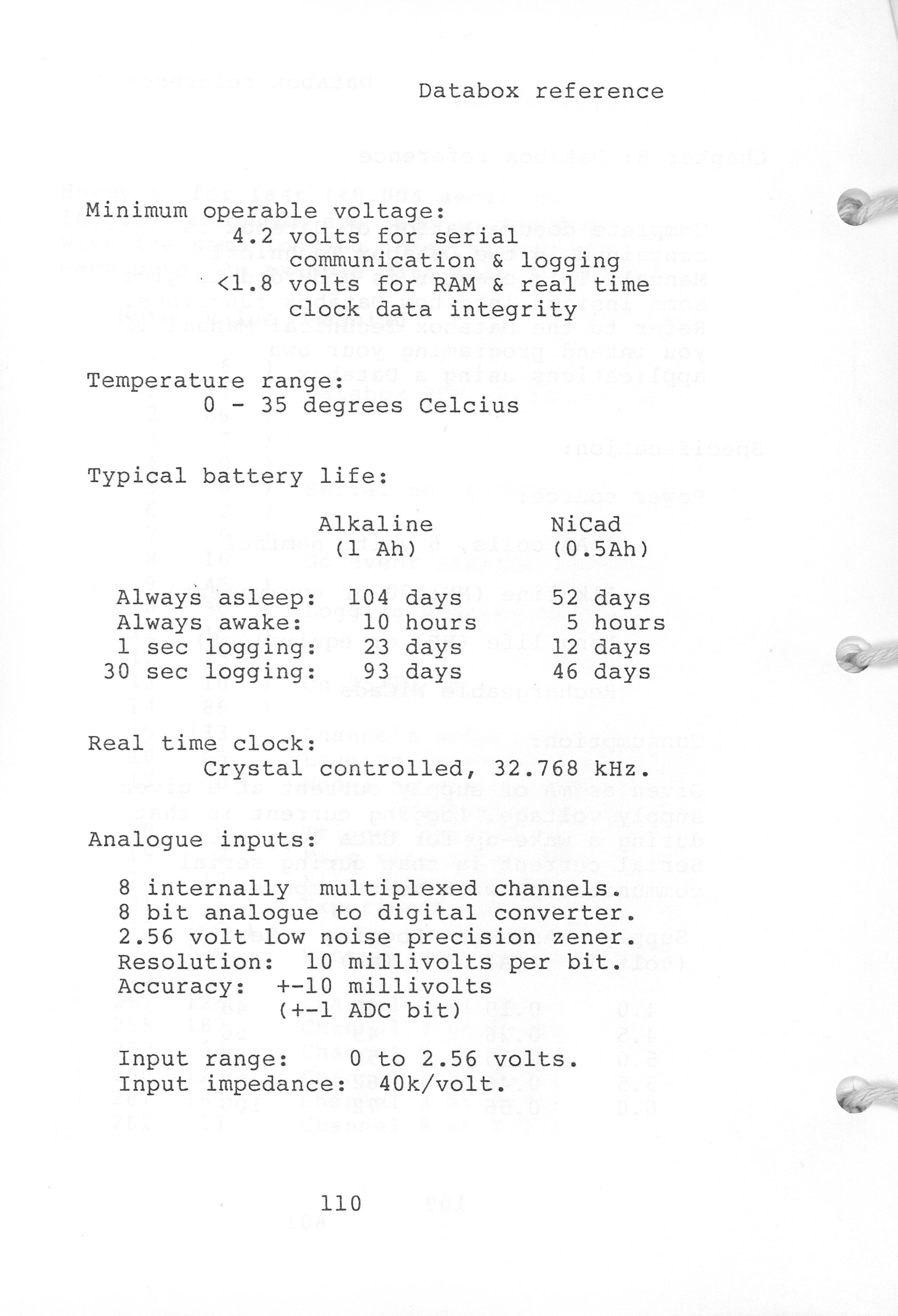

Databox hardware specification, from the user manual.
